DESCRIPTION

Basic Info

Model NO.	M300
Delivery Time	10 Days
Copper Purity	99.9%
Total Power	12.45 Kw
Weight	1350 Kg
Function	Crush Scrap Cable Wires Separate Copper Plastic
Transport Package	Standard Exported Ply Wooden Case
Specification	4410*1360*1915 mm
Trademark	GL
Origin	Henan, China
HS Code	8479820090
Production Capacity	60-100kg/H

Product Description

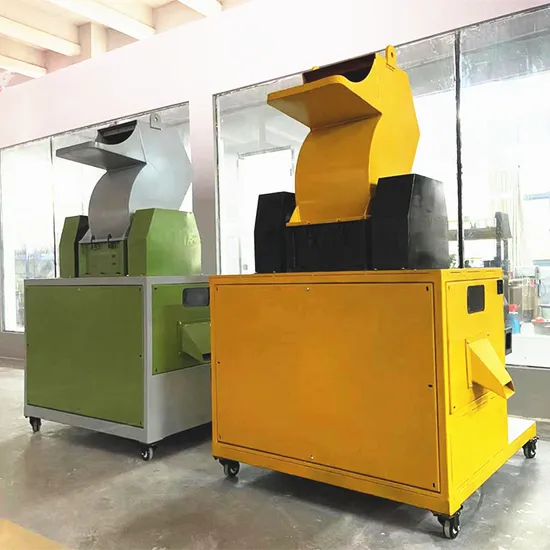

Mini automatic metal cable wire granulator separator machine

Product Description

Cable Recycling Introduce: M300(capacity:60-80kg/h)is used for recycling waste household communication cables, car cables,motor cables and other industrial cables with a diameter below 20mm. It mainly includes crushing and separating,and it also has high efficiency dust collecting system to get clearly copper granules and plastic granules. This small household Cable Wire Copper Plastic Separator has high recycling efficiency and high purity. Mixed crushed material(copper pellet and plastic pellet)enter vibrating separator together with airflow,and finally the pellet are put on the small vibrator(second separating system)to get 99.99% purity.Details1. PLC controller, which is designed with PLC controlling system with touch screen. You only need to press start button and the wire recycling machine will start step by step automatically. You can set the parameters through the touch screen to make the copper wire granulator work efficiently. 2. Optional screen: Inside the cable crusher part, there is screen installed under the blades, You can choose the screen size for your option. 3. High quality cutting blades: There are moving blades and fixed blade inside the wire shredder. We provide baldes made of different raw material and will give best recommendation according to different type copper cables. 4. Small vibrating separator: The vibrators finish second spearating of the output copper and plastic granules, through second separating, purity of the copper will be around 99.99%. Advantages:1. Easy to move, Saving space, Integrated structure, Small dimensions.2. Low power consumption, Stable performance. 3. Highly copper recycling rate can reach 99.99%.4. No water is needed, no dust, no environmental pollution.5. Controlled by electricity control panel, highly automatic.

Detailed Photos

Scrap cable wires: below 20mm(Note; the diameter is each single strand. If you are not sure whether your cables are applicable for this copper plastic separator, welcome to send some cables to us for testing. )Final products: Machine show:

Blade and screen:

Product Parameters

Model	Dimension (cm)	Total Power (Kw)	Capacity (Kg/h)	Weight (Kg)
M300	140*130*200	12.24	60-80	1350KG
M400	150*150*190	11.92	100	750
400	270*190*230	23.12	150-200	1200
600A	400*195*230	48.36	300-400	3400
600B	430*195*240	52.36	300-400	3400
800	920*410*240	78.76	500-800	8000
1200	1600*1000*300	129.36	1000-1500	12000

Power for M300

Serial number	Description	Quantity	Power (kw)
1	crusher	1 set	7.5
2	Vibration system	1 set	4.5
3	Small shaking table	1 set	0.24

Certifications

After Sales Service

Service1. The machines except spare parts are guaranteed for 12 months.2. Engineer will be sent to your place to guide how to operate for the production line.3. We will send you extra set of spare parts and two sets small vibrators.

FAQ

1.Is there wearing part on the machine? Yes.The spare parts is blades and screen, their use life is more than 2 years, there is a special blade sharping machine for blades maintenance, we can supply it if need.2. What's the lognest continuous working time for scrap copper wire granulator machine? Normally 10 hours per day. 3. Is the machine easy to operate? How many workers required to operate it? This machine has precise and simple control system.For small copper wire recycling machine, one worker is enough.For complete copper recycling line, two workers are required.
